| 起源の場所: | 中国 | ブランド名: | TOPSKY |
|---|
|
詳細情報 |
|||
| 画面: | 12inchの高さの軽いLCDのスクリーン | ロックを壊す: | 15 |
|---|---|---|---|
| リモートウェイト: | 1.4kg | 相対湿度: | 0から95% |
| 携帯性: | 持ち運びが簡単で迅速な導入ができるように設計されています | 保管温度: | -45°Cから65°C |
| 補聴器のサイズ: | 210*100*100mm | 重荷 を 背負う: | <30kg |
| 幅: | 0.4m | 主機重量: | 28kg |
| ガス流量: | 1.0L または顧客のニーズに合わせて設定 | 外カバー: | 洗える難燃性生地 |
| 無線制御間隔: | 500M | 回路レジスタネース: | 14.7Ω |
| ステアリング直径: | ≤2400mm | ||
| ハイライト: | Remote Control Fire-fighting Demolition Robot,Multi-functional Demolition Tool Extinguishing Robot,High Power Diesel Engine Rescue Robot |
||
製品の説明

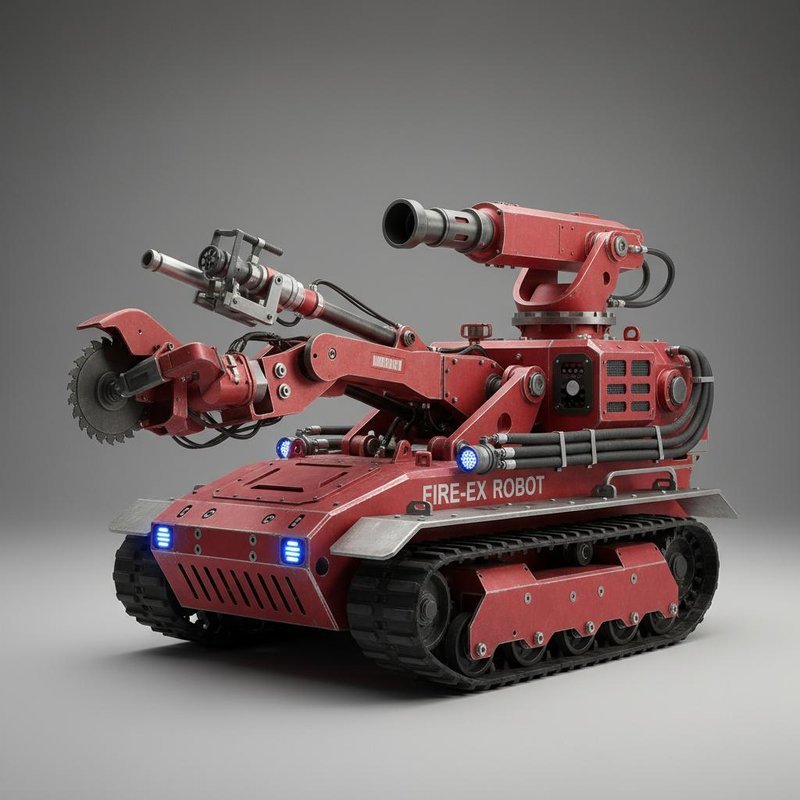

This specialized robot replaces human operators in high-risk rescue environments including toxic contamination zones, structural collapse hazards, and high-radiation areas. The system enables remote-controlled demolition operations, concrete drilling and cutting, tunnel excavation, emergency response, furnace and kiln maintenance, and nuclear facility decommissioning while eliminating personnel exposure to danger.
| Parameter | Specification |
|---|---|
| Model | RXR-JM200D |
| Basic Functions | Multi-functional demolition tool head with cutting, expanding, squeezing, and crushing modes |
| Chassis Structure | ATV hydraulic tracked chassis |
| Power System | Four-stroke diesel engine (27kw) + hydraulic pump system |
| Dimensions | 3100mm (L) × 880mm (W) × 1850mm (H) |
| Travel Width/Height | ≤ 880mm / ≤ 1850mm (including water cannon system) |
| Weight | Approximately 1600kg (including crushing hammer) |
| Traction Force | ≥ 10000N |
| Tipping Force | ≥ 10000N |
| Maximum Speed | 0 - 3km/h, remote control with stepless speed variation |
| Climbing Ability | 58% (30°) |
| Remote Control Distance | 150m |
| Working Radius | 4.5m |
| Fuel Tank Capacity | 50L |
| Ground Clearance | 160mm |
| Obstacle Clearance | 200mm |
| Continuous Operation | 8 hours |
| Rescue Capability | Tipping tool for obstacle clearance; towing ring for transporting supplies and towing rescue vehicles |
