Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue

起源の場所:	中国	ブランド名:	TOPSKY

詳細情報
パッケージ:	1PC/バッグ	障害物横断高さ:	300mm
モーター:	12V	保管温度:	-45°Cから65°C
製品名:	テロ対策装備	体重:	16kg
制御装置のサイズ:	263x206x156mm以下	ドリルのサイズ:	4/5/6/8mm
断片幅:	60~140cm	フック:	SML
パネル材質:	アラミドUD織物 (ケブラー)	ビーチバッグサイズ:	731650cm
画像形式:	JPEG または BMP	ロックを壊す:	15
保護レベル:	NIJ IIIA 9mm および 0.44mag 用
ハイライト:	360° Coverage Slope Monitoring Radar , 0.1mm Accuracy Panoramic Radar , 8kg Portable Emergency Radar

製品の説明

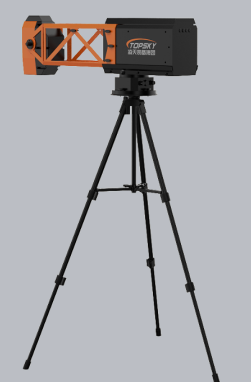

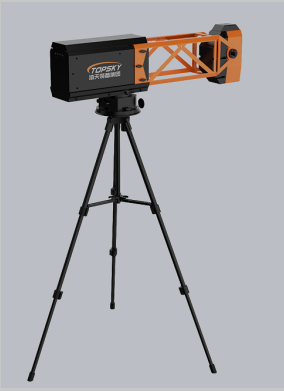

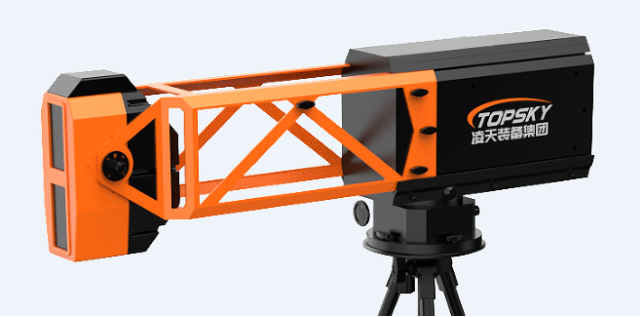

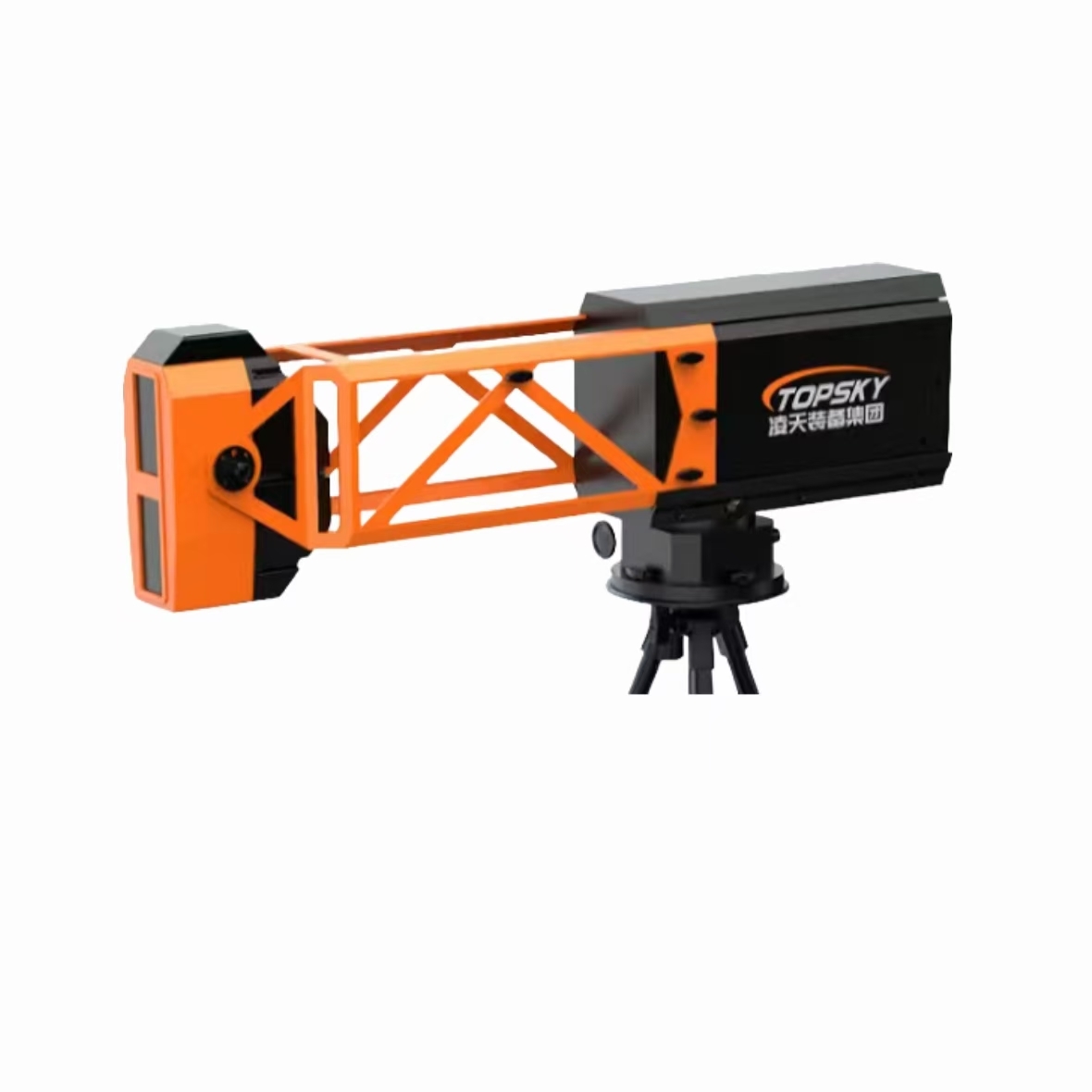

Panoramic Slope Monitoring Radar

The PSR-5000J emergency ultra-portable slope monitoring radar utilizes circular arc synthetic aperture radar technology with broadband frequency modulation continuous wave signals and phase difference interferometry measurement. This advanced system provides comprehensive 360° coverage, precise deformation measurement, and reliable all-weather operation.

Designed specifically for emergency rescue operations, this equipment emphasizes lightweight construction, portability, and low power consumption. With industry-leading size, weight, and power efficiency metrics, it enables rapid deployment in critical situations.

Key Applications

Open pit mines and geological landslides/collapses
Emergency rescue operations and disaster response
Water conservancy dams and infrastructure monitoring
Urban subsidence and subway transportation systems
Large bridges, high-rise buildings, and wind turbine towers
Railway slopes and transportation corridors

Technical Features

Precision Measurement: 0.1mm deformation accuracy with 30-second data update rate
All-Weather Operation: Microwave penetration capability ensures 24/7 monitoring unaffected by rain, snow, fog, or smoke
Complete Coverage: 360° panoramic monitoring without distance or angle blind spots
Edge Computing Architecture: Integrated processing, positioning, and communication functions within compact 8kg body
Rapid Deployment: Folded dimensions of 0.5×0.3×0.25m fit in 24-inch transport case for airline consignment
Remote Control: Electric pitch angle adjustment for flexible monitoring of varied terrain
Network Connectivity: B/S architecture supports local WiFi and remote 4G/5G cloud monitoring
Advanced Algorithms: Adaptive atmospheric disturbance compensation with less than 2mm/day error
Smart Alert System: Four-level sound/light, SMS, and email alarms with manual/auto monitoring points
3D Visualization: Fast-rendering terrain matching algorithm with sub-meter accuracy
Rugged Design: IP66 protection rating and operational capability down to -40°C

Portability & Deployment

Weighing only 8kg with compact folded dimensions, the system enables single-person transport and rapid setup. The integrated edge computing architecture eliminates external processing requirements, allowing immediate operational readiness at emergency sites to protect rescue personnel from secondary disaster threats.
