Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue

接触

Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue

起源の場所:	中国	ブランド名:	topsky

詳細情報
最大線形速度:	≥1.52m/s、リモートコントロールのステップレス速度	重さを量る:	15.5kg
展開サイズ:	1880mm	保管温度:	-45°Cから65°C
体重:	16kg	湿度:	0-100％
動作モード:	:“グラウンドバランス” / “識別”	角度:	120度
メモリ:	8G SD	ロープスリング:	3/4/5mm Dia*2m
製品作業 f:	2.4GHz	定格電力:	7.5KW
線形偏差額:	≤0.7%	遠隔サイズ:	27818443mm
測定範囲:	0-550mg/100ml
ハイライト:	120° Wide Coverage Slope Monitoring Radar , 0.1mm Deformation Accuracy Panoramic Radar , 8kg Lightweight Emergency Monitoring Radar

製品の説明

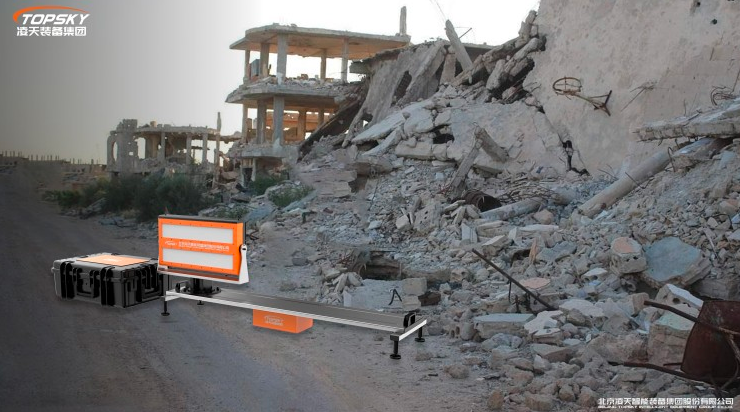

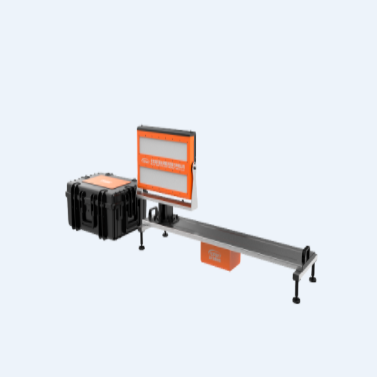

PSR-5000JH Emergency Ultra-Portable Slope Monitoring Radar

The PSR-5000JH emergency ultra-portable slope monitoring radar utilizes circular synthetic aperture radar technology with wideband frequency modulated continuous wave signals and phase difference interferometry. This advanced system provides 120° wide coverage with linear slide rail capability, delivering precise deformation measurement with exceptional all-weather and all-time environmental adaptability.

Specifically designed for rapid emergency response requirements, this lightweight, portable system features industry-leading volume, weight, and power consumption metrics. The compact 8kg device employs an edge computing architecture with integrated information processing, positioning, orientation, and wireless communication capabilities, enabling single-person deployment and rapid operational readiness at disaster sites.

Applications

Open Pit Mines

Geological Landslides & Collapses

Emergency Rescue Operations

Water Conservancy Dams

Urban Subsidence Monitoring

Subway Transportation

Large Bridges

High-Rise Buildings

Wind Turbine Towers

Railway Slopes

Key Functions & Capabilities

High-Precision Measurement: 0.1mm deformation accuracy with maximum data update rate of 30 seconds per cycle
All-Weather Operation: Microwave penetration capability enables 24/7 monitoring unaffected by rain, snow, fog, smoke, or dust
Comprehensive Coverage: 120° mobile rail-type full-circle environmental monitoring using circular imaging and continuous-wave radar technology
Edge Computing Architecture: Complete information processing within the device body with satellite compass and wireless router compatibility for rapid single-machine deployment
Flexible Positioning: Remote-controlled electric pitch angle adjustment for monitoring in high-altitude and mountainous terrain with significant elevation differences
Multi-Platform Monitoring: B/S architecture software supports real-time LAN/WiFi monitoring on laptops and remote 4G/5G mobile network cloud-based monitoring
Advanced Algorithms: Unique adaptive atmospheric disturbance compensation with less than 2mm daily error
Intelligent Alert System: Adaptive monitoring and early warning with manual/automatic monitoring point addition and 4-level configurable audible, SMS, and email alerts
Rugged Design: IP65 protection rating with operational capability down to -45°C, supporting continuous outdoor operation without additional protection
