| 起源の場所: | 中国 | ブランド名: | topsky |
|---|
|
詳細情報 |
|||
| ドリルのサイズ: | 4/5/6/8mm | 機能性: | 多機能 |
|---|---|---|---|
| 重荷 を 背負う: | <30kg | キーワード: | 安全化学防護服 |
| 相対湿度: | 0から95% | 応用: | テロ対策 |
| 装甲ブラストプレート: | 1800 m/s (鼠径部、胸、首) | 方位範囲: | 0° ∼360° |
| 透明なウィンドウ: | ≥750m/s | 角度: | 120度 |
| 材料: | 高強度合金および複合材料 | 別の名前: | 防護服型医療用隔離ガウン |
| バッテリー: | 7アルカリ乾電池1.5単4×2本 | 保護レベル: | NIJ IIIA 9mm および 0.44mag 用 |
| 表地: | 防弾: アラミドUD | ||
| ハイライト: | 7 Parameters Detection Gas Detector,LCD Display Safety Monitoring Device,Audible and Visual Alarm Multi-parameter Detection Alarm Instrument |
||
製品の説明

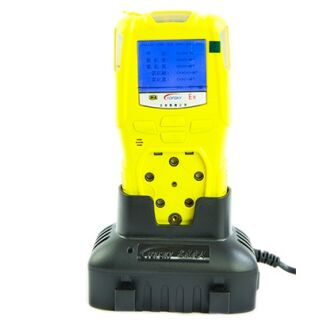

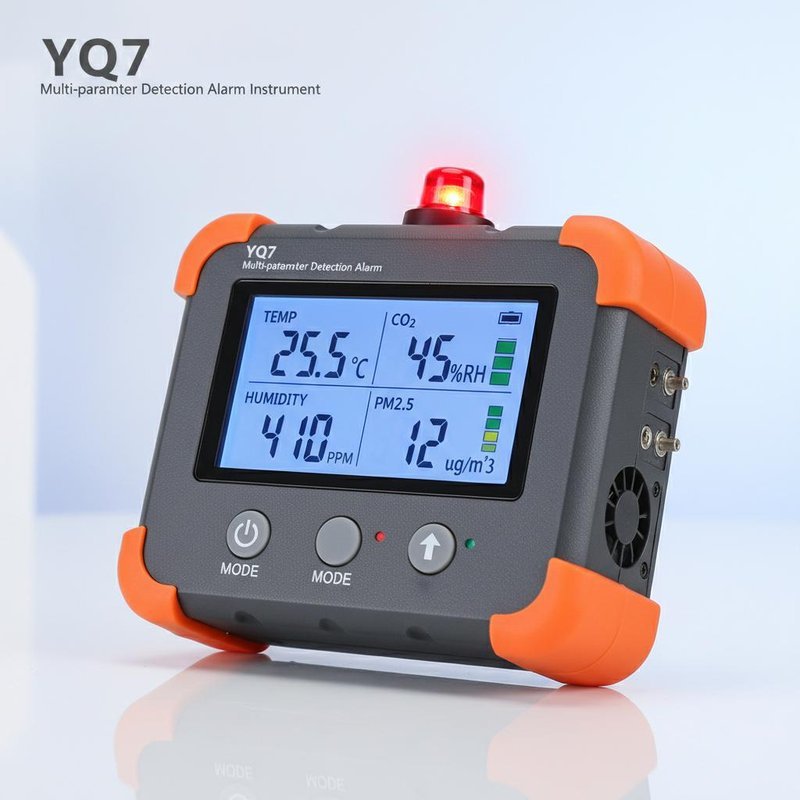

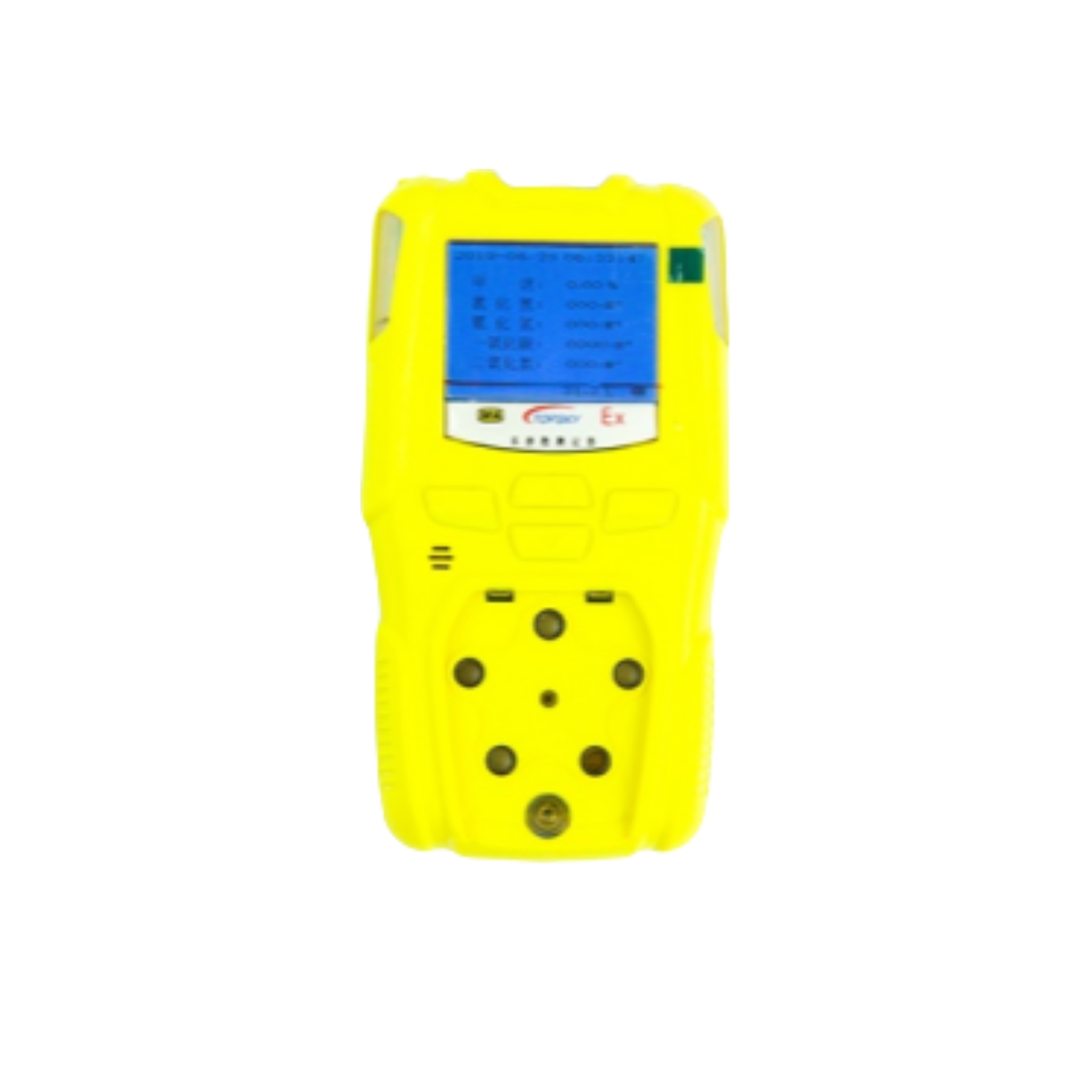

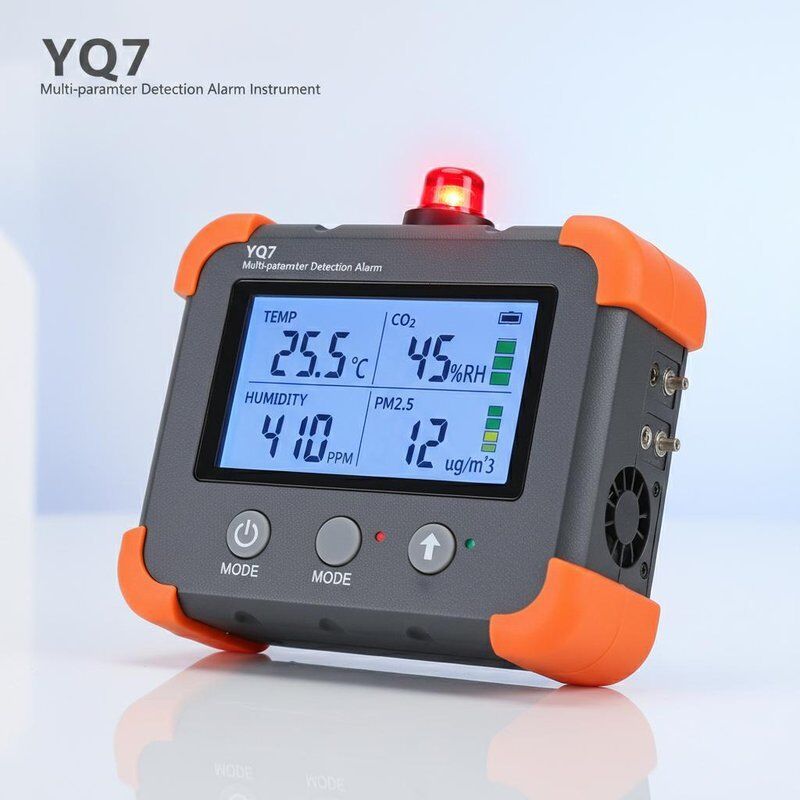

The YQ7 multi-parameter detection alarm instrument simultaneously and continuously detects 7 parameters including CH4, O2, CO, CO2, H2S, °C, and m/s, triggering audible and visual alarms when parameters exceed preset limits. Utilizing an 8-bit microcontroller and high-precision detection components, this instrument delivers high sensitivity and rapid response. The 3-inch color LCD provides clear, reliable display for all operational personnel including technicians, operators, and management.
| Parameter | Measurement Range | Resolution |
|---|---|---|
| Methane (CH4) | 0 - 100% (VOL) | 0.01% |
| Oxygen (O2) | 0 - 30% (VOL) | 0.1% |
| Carbon Monoxide (CO) | 0 - 1000 ppm | 1 ppm |
| Hydrogen Sulfide (H2S) | 0 - 100 ppm | 1 ppm |
| Temperature | -20.0 - 60.0 ℃ | 0.1 ℃ |
| Wind Speed | 0.4 - 30.0 m/s | 0.1 m/s |
Display: LCD shows real-time data and system status with vibration, sound and light alarm, fault and under-voltage indication
Audible Alarm: ≥75 dB(A) at 1 meter distance
Visual Alarm: Visible ≥20 meters in darkness
Power Supply: 1600 mAH lithium manganese oxide lithium-ion battery with protection board and overcurrent protection
Battery Specifications: Maximum open-circuit voltage: 4.3V, Maximum short-circuit current: 1.0A
Operating Time: 10 hours (non-alarm state)
Housing Material: ABS engineering plastic
Protection Rating: IP54
Weight: 1 kg
Dimensions: 160mm × 85mm × 43mm
