Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

接触

Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

起源の場所:	中国	ブランド名:	topsky

詳細情報
光源の種類:	青いレーザーライト;紫色のレーザーライト	別の名前:	防護服型医療用隔離ガウン
最大検出:	≥2.5km (車両)	ヘルメット:	709.4m/秒
回転する:	0-120rpm	給水タンク容量:	16L
検出応答時間:	リアルタイムで検出できる ≤2s	ドリルのサイズ:	4/5/6/8mm
主機重量:	28kg	ヘルメットシェル:	≧720m/s
LCDディスプレイ:	2.0インチフルHDディスプレイ	可用性:	世界中で購入可能
力:	24V	ブレーキ距離:	≤0.11m
制御方法:	バッテリー駆動
ハイライト:	Intrinsically Safe Infrared Thermal Imager , Real-time Detection Thermal Imaging Device , Multi-point Temperature Measurement Mine Safety Equipment

製品の説明

Mine-used Intrinsically Safe Infrared Thermal Imager

Product Overview

The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.

Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.

Key Applications

Detection of high-temperature areas and real-time temperature difference imaging
Identification of coal seam spontaneous combustion areas in ventilation work areas
Search and rescue operations for locating trapped personnel in dark conditions

Technical Specifications

Display & Resolution	Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes	Photo mode and temperature measurement mode with photo/video recording capability
Data Management	Storage, recall, deletion, and playback functions
Temperature Measurement	Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options	Multiple pseudo-color and color scale display options
Alarm Functions	High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System	Manual and automatic focusing functions
Interface Features	Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface	Physical keyboard with Chinese menu operation interface

Performance Characteristics

Repeatability: ≤0.5°C
Alarm accuracy: Alarm display value within ±1.0°C of set value
Audible alarm function when temperature exceeds preset points

Power & Safety Specifications

Battery Module	Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters	Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification	Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction	ABS + silicone shell
Weight	1.0kg
Dimensions	283×103×160mm
Protection Rating	IP54

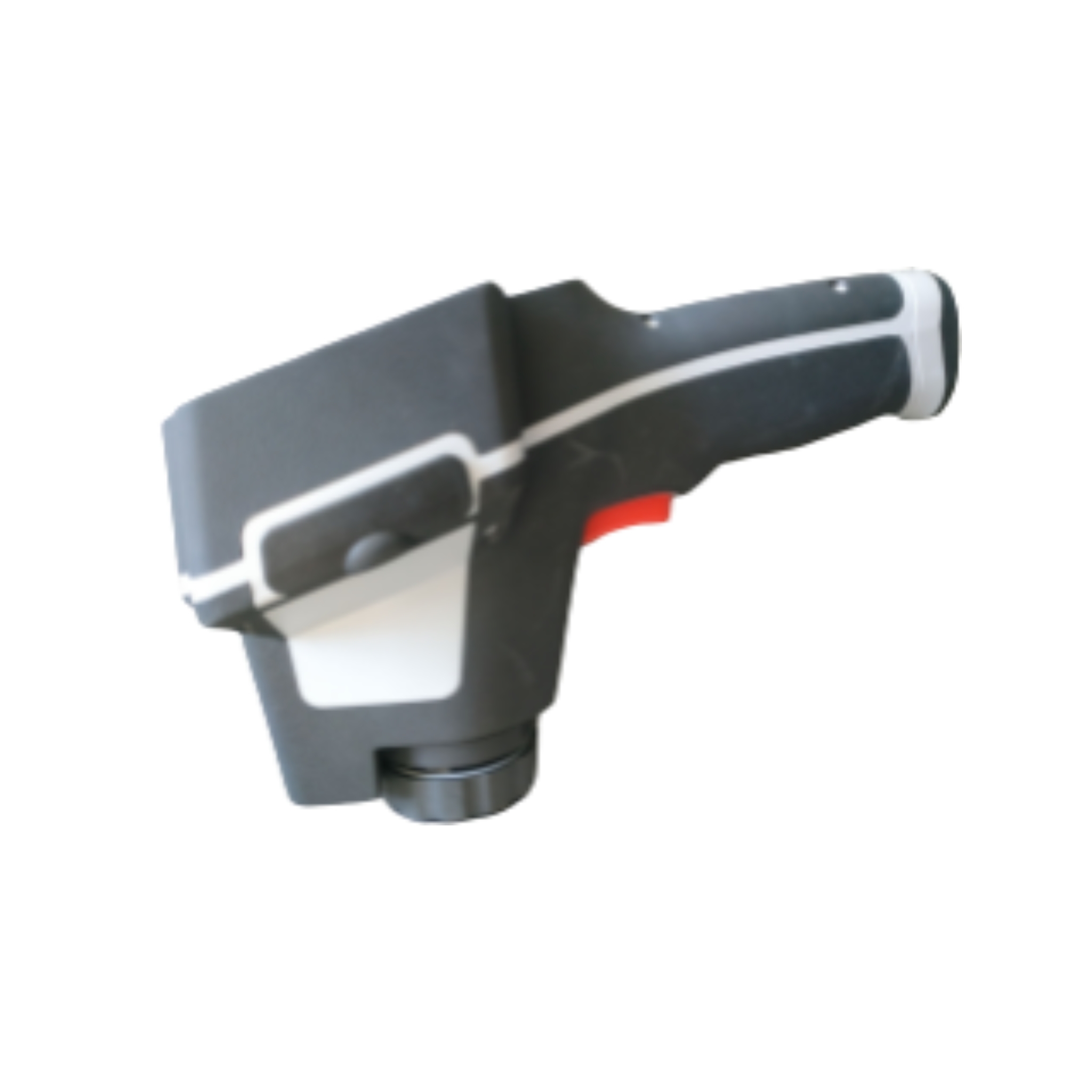

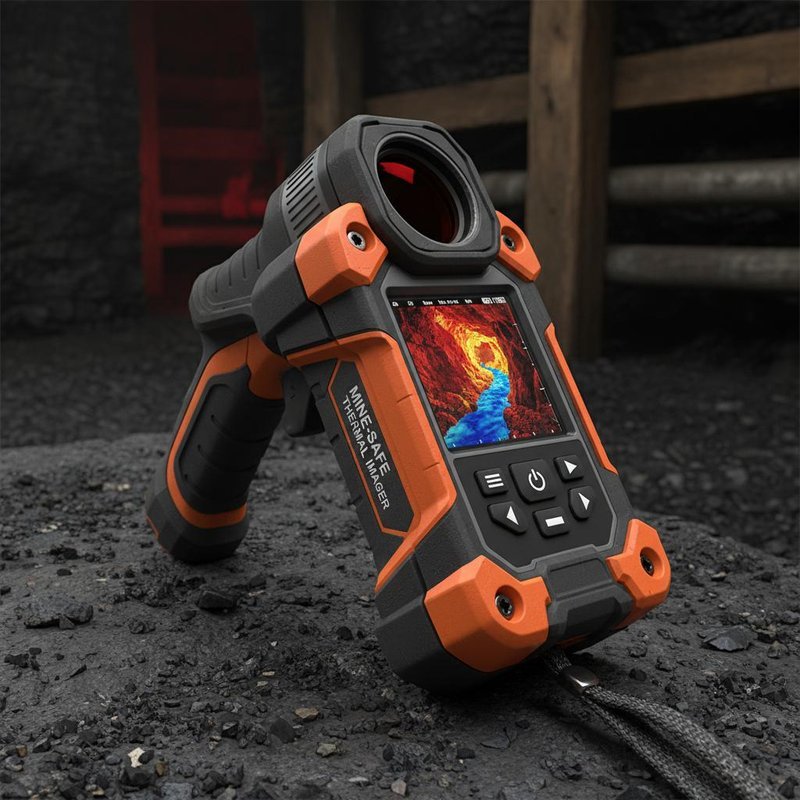

Product Images
